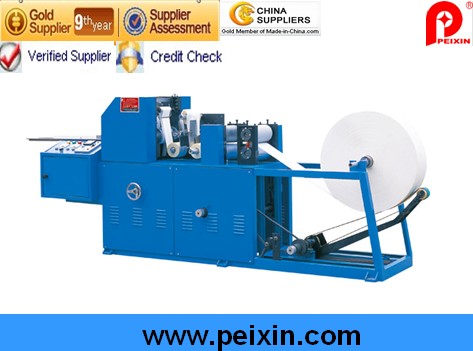

Vacuum Mini Type Face Tissue Machine (PX-SPZ-(CY) ZD 200/210)

Payment Terms: T/T,L/C
Place of Origin: Fujian, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: PX-SPZ-(CY) ZD 200/210
Production Capacity: 100sets/year
Finished products size: A. 200(L)*200(W)+-2mm; B. 2...
Jumbo roll size: The width is as per machine...
Power: 5kw: (380V, 50Hz)
Embossment down roller: Steel to rubber, steel to s...
Weight of equipment: 1.0T
Means of Transport: Ocean
Packing: wooden packing
Folded products size: A. L*W =75*52mm, B. L*W =10...
Folding speed: 500~600PCS/min
Vacuum system power: 3KW
Overall size: L*W*H=3.5*1.0*1.5m

This machine adopts folding through vacuum absorption.Under european CE standard designing,Pass CE certificate.Most of parts are precisely processed

Function & Character:
1. This machine adopts folding through vacuum absorption, under embossment and cutting, the tissue is auto-folded into mini type and portable handkerchiefs tissue. This machine is stable in running, fast in speed and trim in folding. Multi sizes can be adjustable if tissue length is in the range of 68mm~110mm.
2. Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. Most of parts are precisely processed by numerical-control machine; The key mechanical parts are under CNC processing; While the main outsourcing parts are world famous brand.
4. As per requirement, 1~4 color printing for pattern or logo can be added.
Main Technical Parameter:
1. Finished products size: A. 200(L)*200(W)+-2mm; B. 210(L)*210(W)+-2mm (other sizes can be ordered)
2. Folded products size: A. L*W =75*52mm, B. L*W =105*52mm;
3. Jumbo roll size: The width is as per machine model, Roll diameter≤1200mm 13~15G/M2 (3 layer)16~20G/M2 (2 layers);
4. Folding speed: 500~600PCS/min;
5. Power: 5kw (380V, 50Hz);
6. Vacuum system power: 3KW;
7. Embossment down roller: Steel to rubber, steel to steel( ordered separately);
8. Overall size: L*W*H=3.5*1.0*1.5m;
9. Weight of equipment: 1.0T.
