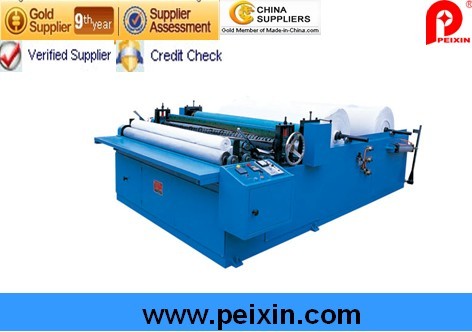

Embossing Machine from China manufacturer - Fujian Peixin Machinery Making Industrial CO.LTD.

Payment Terms:	T/T,L/C
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PX-WSZ-DK 1092/1575/1760/22...

Production Capacity: 100sets/year

Machine Model: 1092/1575/1760/2200/2500/28...

Finished products diameter: 60~150

Production speed: 120 m/min

Means of Transport: Ocean

Packing: wooden package

Jumbo Roll Width: 1350/1750/1900/2150/2450/27...

Jumbo Roll Core Inner Diameter(mm): 76.2

Jumbo Roll Stand: 1-3ply

1. Machine Model: 1092/1575/1760/2200/2500/2800;
2. Jumbo Roll Width: 1350/1750/1900/2150/2450/2700;
3. Finished products diameter: Φ60~1

Function & Character:
1. Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.
2. Most of parts are precisely processed by numerical-control machine, while the key mechanical parts are under CNC processing.
3. The perforation is made by spiral soft blade; Optimizing to adjust the tightness of toilet roll and the length of section distance through stepless speed-regulator; Mounting electronic counting to stop and soft starting system. It is ideal equipment for producing toilet paper with or without core.
4. Bearing, electric parts and timing belt are famous brand.
5. This equipment is durable and wearable with simple operation and maintaining.

Main Technical Parameter:
1. Machine Model: 1092/1575/1760/2200/2500/2800;
2. Jumbo Roll Width: 1350/1750/1900/2150/2450/2700;
3. Finished products diameter: Φ60~150 (Tightness is adjustable);
4. Jumbo Roll Size: Φ1200;
5. Jumbo Roll Core Inner Diameter(mm): 76.2 (other sizes can be ordered);
6. Perforation Distance: 100~150 Adjustable, other sizes can be ordered;
7. Production speed: 120 m/min;
8. Embossment: Single embossment; Double embossment, Steel to steel embossment;
9. Embossment Down Roller: Felt roller, paper roller, steel roller;
10. Jumbo Roll Stand:1-3ply(Ply quantity can be required);
11. Power: 3-11KW;
12. Overall Size (mm): 3800*2700*1200~4000*3600*1200;
13. Weight of equipment: 1400-3000KG (approximately);
