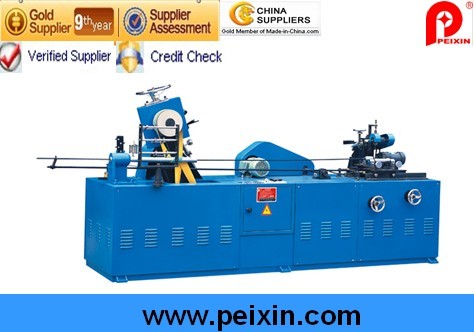

Automatic Roll Core Machine (PX-WSZ-JXA)

Payment Terms:	T/T,L/C;negotiable
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PX-WSZ-JXA

Production Capacity: 100sets/year

Core diameter (mm): Φ 20~60(chosen by customers...

Speed: 0-20m/min

Requested power: 3.5KW

Weight of equipment: 1500kg

Means of Transport: Ocean

Packing: wooden packing

Core layers (mm): 2~6plies(chosen by customer...

Core length: Variable

Overall size (mm): 3500*1000*1600

Most of parts are precisely processed by numerical-control machine; The key mechanical parts are under CNC processing; While the main outsourcing part

Function & Character:
1. This equipment adopts the principle of integrated technology between electromagnetic iron and lever, to materialize auto core cutting synchronously without stop machine. It possesses features, such as, high-speed, auto drying, tight rewinding and so on. It is the preferred equipment for producing core for toilet paper, plastic PE film and N. W. To use.
2. Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. Most of parts are precisely processed by numerical-control machine; The key mechanical parts are under CNC processing; While the main outsourcing parts are world famous brand.

Main Technical Parameter:
1. Core diameter (mm): Φ 20~60(chosen by customers);
2. Core layers (mm): 2~6plies(chosen by customers);
3. Speed: 0-20m/min;
4. Core length: Variable;
5. Requested power: 3.5KW;
6. Overall size (mm); 3500*1000*1600;
7. Weight of equipment: 1500kg.
